Crystal Specifications

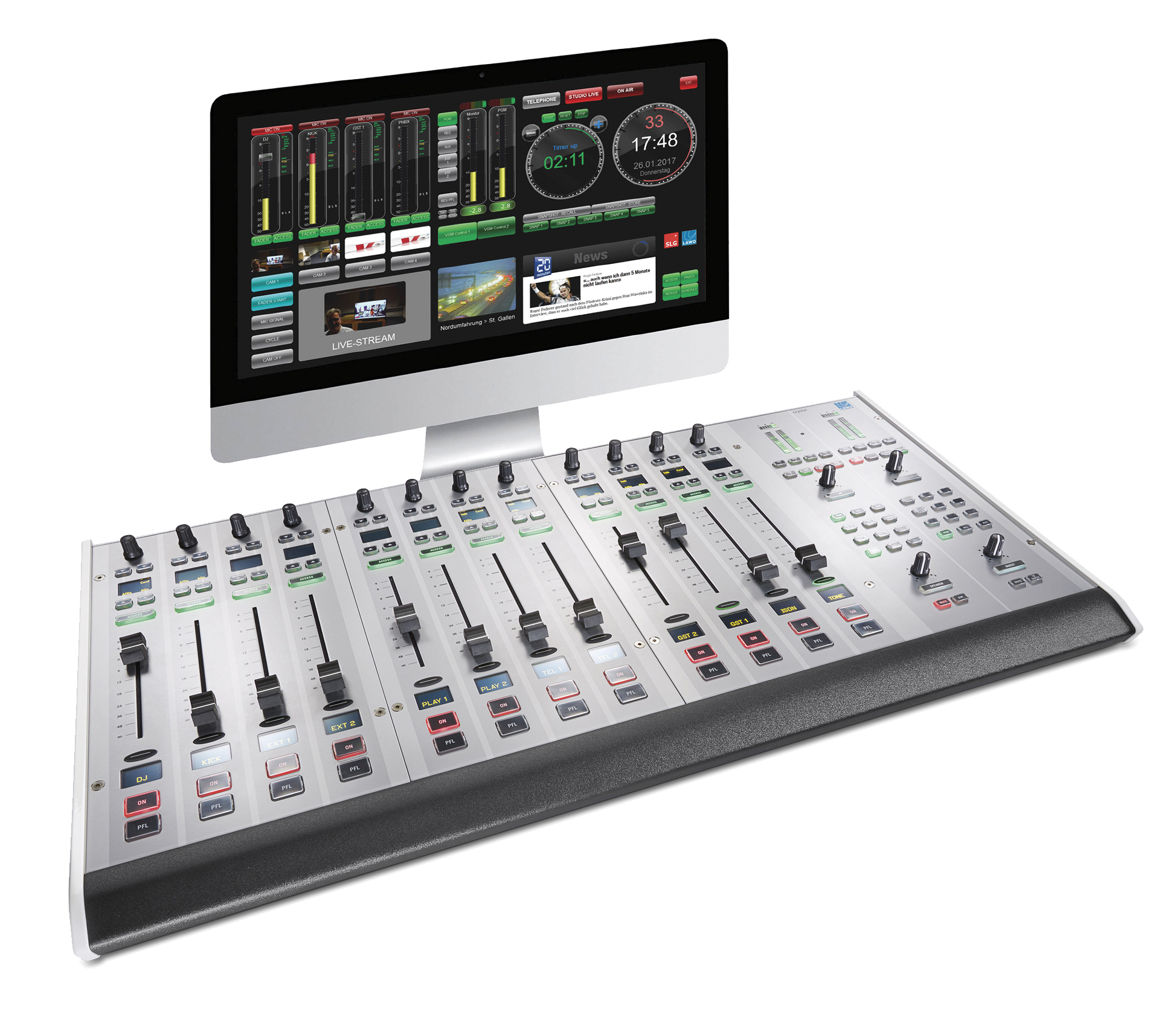

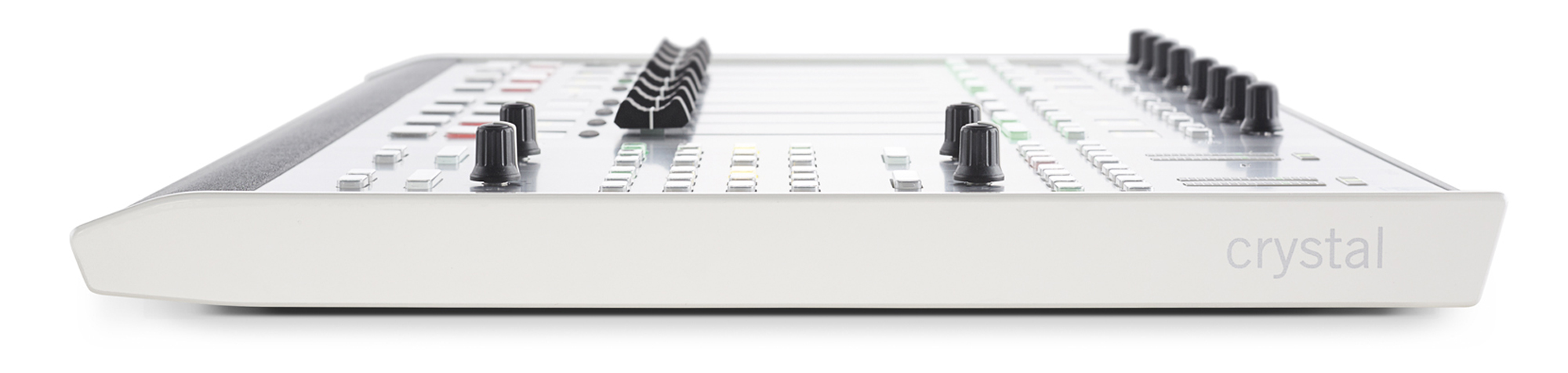

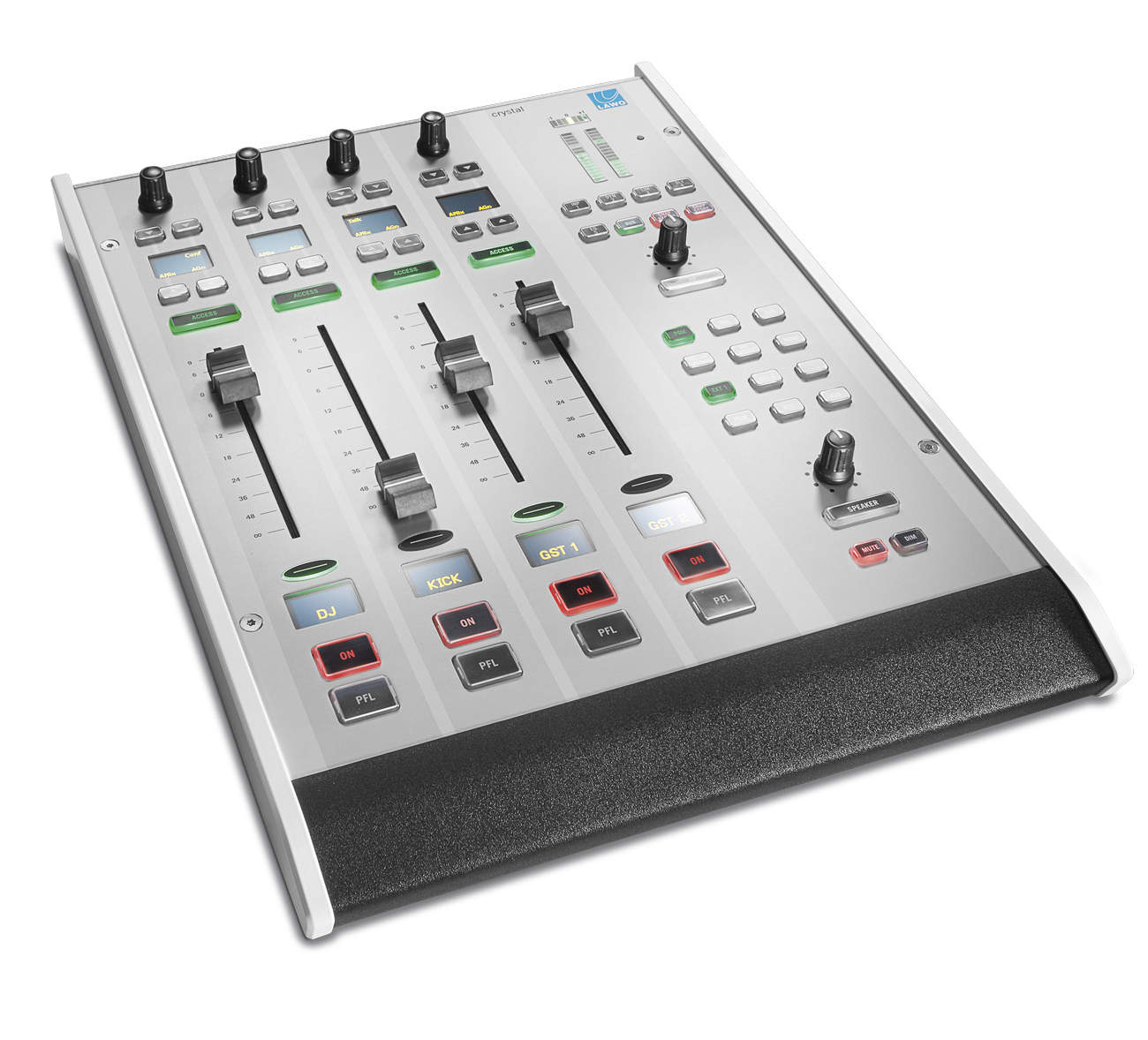

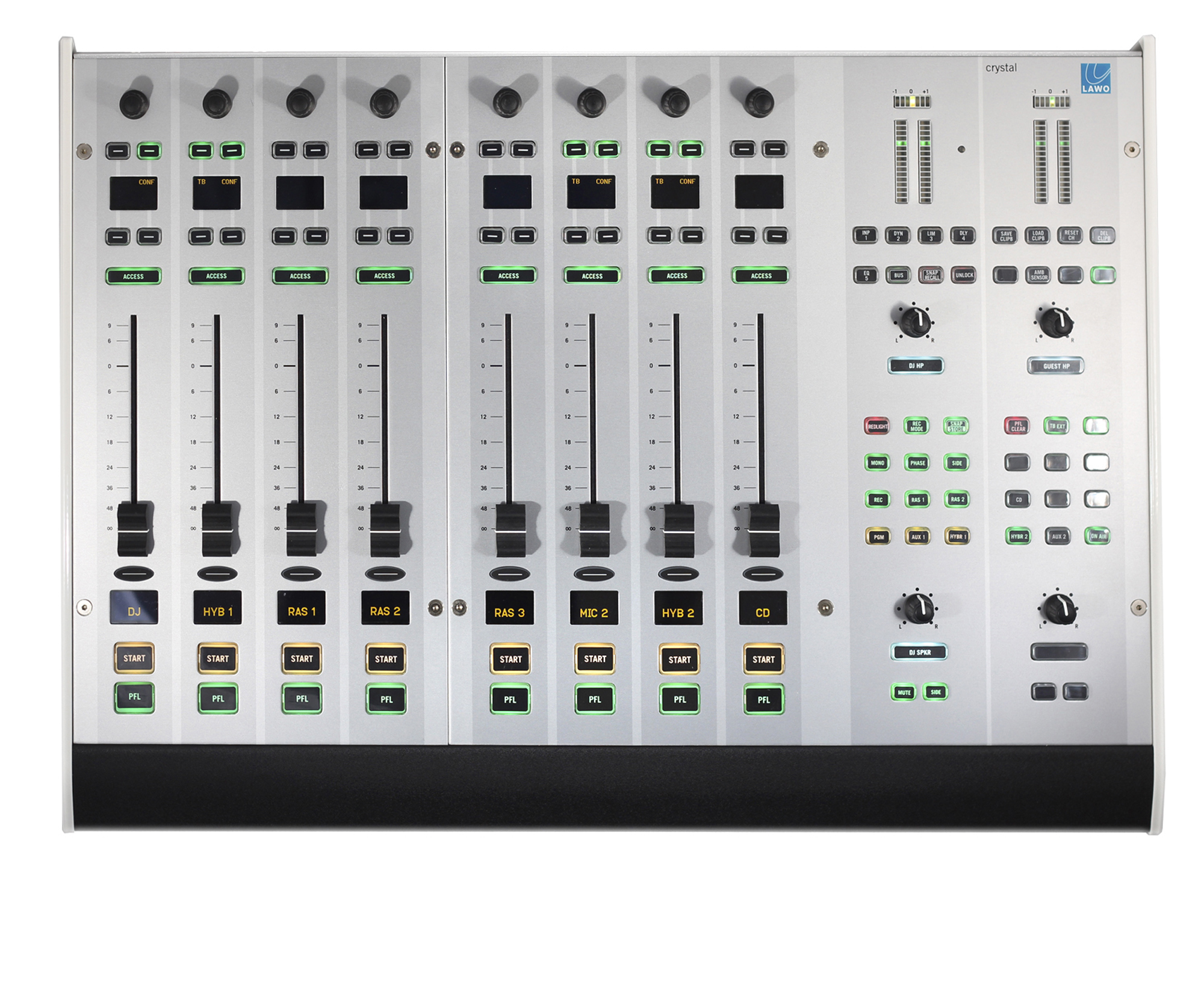

Click on any image below for a high resolution photo
Control Panel
Available as desk top or integrated version
Up to 60 motorised 100 mm faders
Operation possible with multiple operating layers (multi-layer, up to 120 virtual faders)
Panel version with rotary and key extensions available as upgrade
Optional visual extension with multitouch function to display channel levels and operation modules
System core
Modular plug-in card system based on the DALLIS I/O system
Central motherboard with integrated control system and signal processing (redundantly designed as an option)
Integrated matrix with up to 512 inputs and outputs (non-blocking, 384 MADI + 128 DALLIS I/O slots)
PC-independent and fan-free operation
Optional redundant power supply
Signal Processing
Integrated routing matrix, 768x768 crosspoints, non-blocking, transparent routing
96 mono DSP input channels (stereo, surround or simulcast coupling possible) with input gain, panpot / balance, direct out and insert
128 DSP modules ( 96 on input channels, 32 on sums, coupling possible like input channels)
EQ (3 fully parametric bands and 2 filters)
Dynamic units (gate , expander and compressor)
Limiter
Delay (up to 340 ms with switchable units: metres, ms or frames
80 mono summing busses (stereo or 5.1 coupling possible)
500 metres (mono, stereo and surround coupling possible) with loudness function on sums and channels
64 mini-mixers
32 DeEssers (mono)
Integrated Intercom matrix with up to 64 talkback stations
Interfaces
Analog Mic / Line (transformer or el. balanced)
Headset (incl. VCA interface)
AES / EBU (AES3) with and without sampling rate converter (SRC)
ADAT® (ADAT® is a registered trademark of Alesis, LLC and is used here under license.)
Serial data transfer (RS232, RS422, MIDI)
GPIO (OC, Relay, VCA)
2 or 6 MADI ports on the masterboard
IP codec
AES67/RAVENNA Audio-over-IP option
Synchronisation
Wordclock input and internal generator
Optional via MADI
Supported sample rates 48 kHz and 44.1 kHz
Control
Up to 5 PFL busses
Surround sources (5.1 or 5.1+2) and busses (5.1)
Integrated mix-minus /conference logic
Freely programmable logic core (redlight, faderstart, program switch, TB integration, etc.)
IP-based and serial interface for interaction with radio automation systems (“sapphire” operating mode)
IP-based and serial interface for matrix control ("Nova17" operating mode)
Controller and Routing matrix optionally redundant
Ember+ interface for integration with master control systems
Optional MIDI interface for interaction with audio workstations (HUI protocol e. g. for ProTools™)
Remote control of external Lawo matrices possible (e. g. source selection)
Optional control via touch screen (VisTool)
Optional graphic matrix control (NovaConnect)
Configuration and Maintenance
Software for system configuration and logic programming
Remote control of nearly all console functions with the help of VisTool, also via VPN
Integrated web server for system diagnosis
Dedicated SW tool for performing software updates
Remote maintenance via IP
Subject to change without prior notice, no responsibility is taken for the correctness of the details provided.
