Ruby Specifications
Click on any image below for a high resolution photo

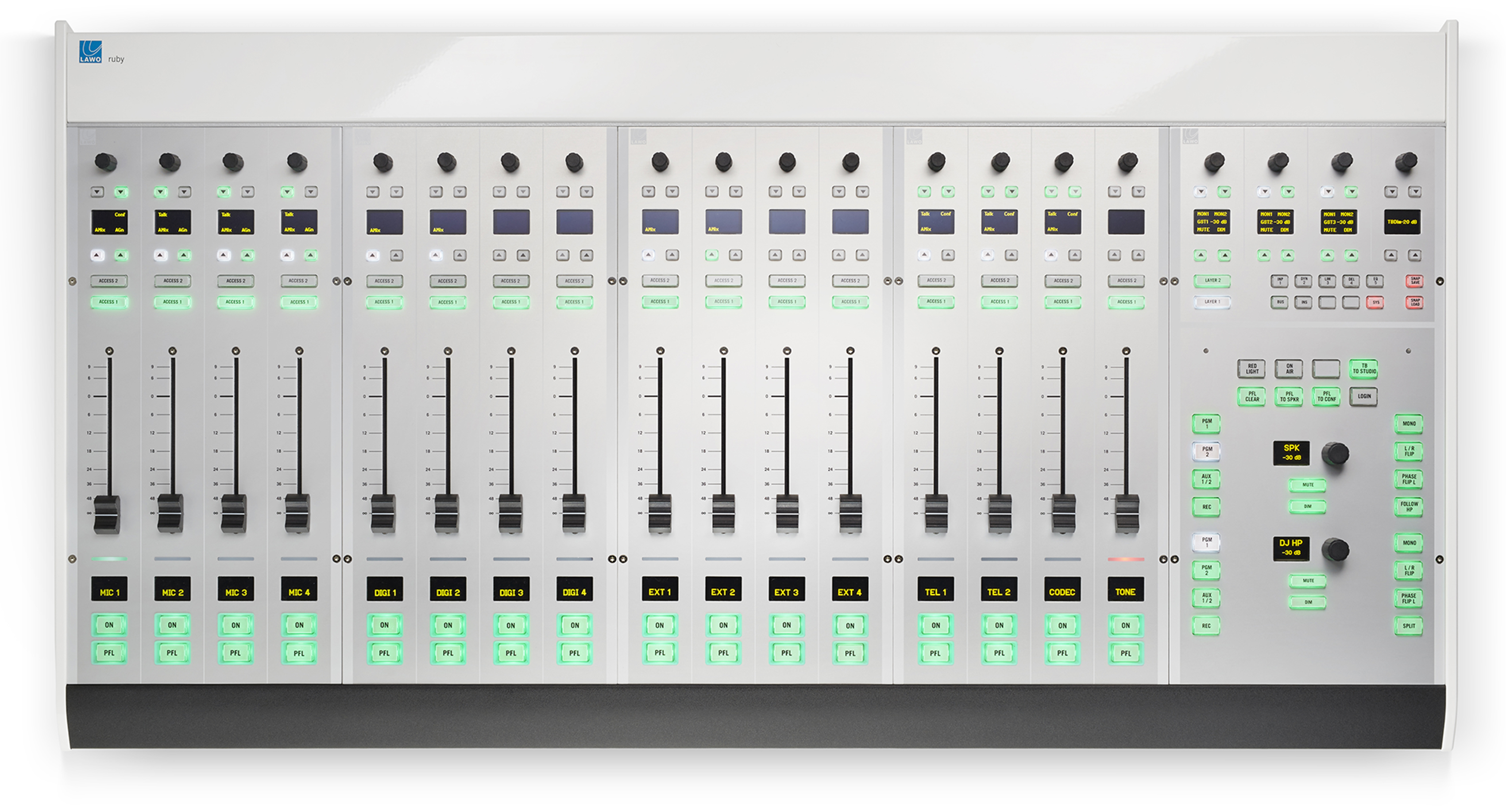

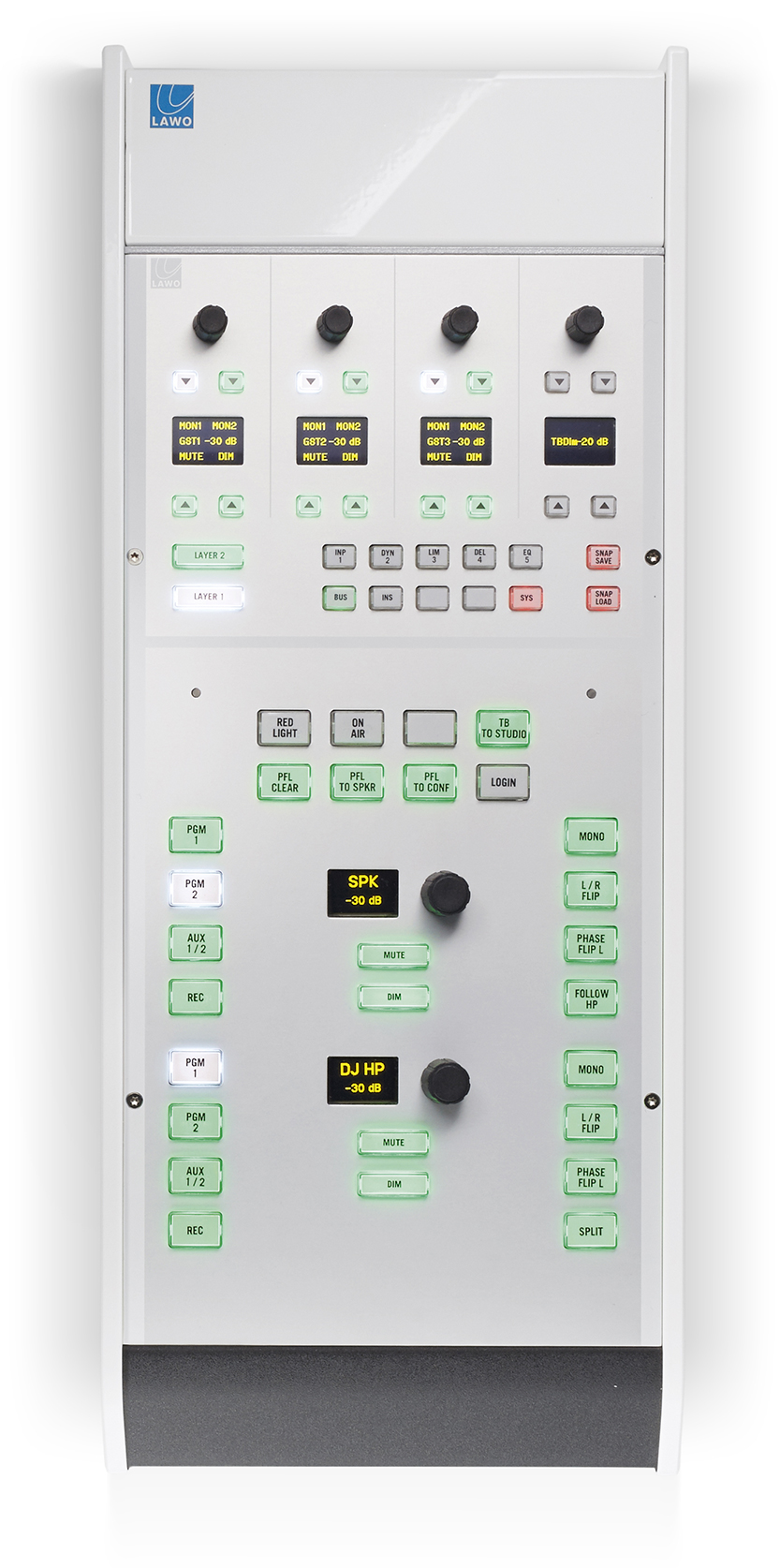

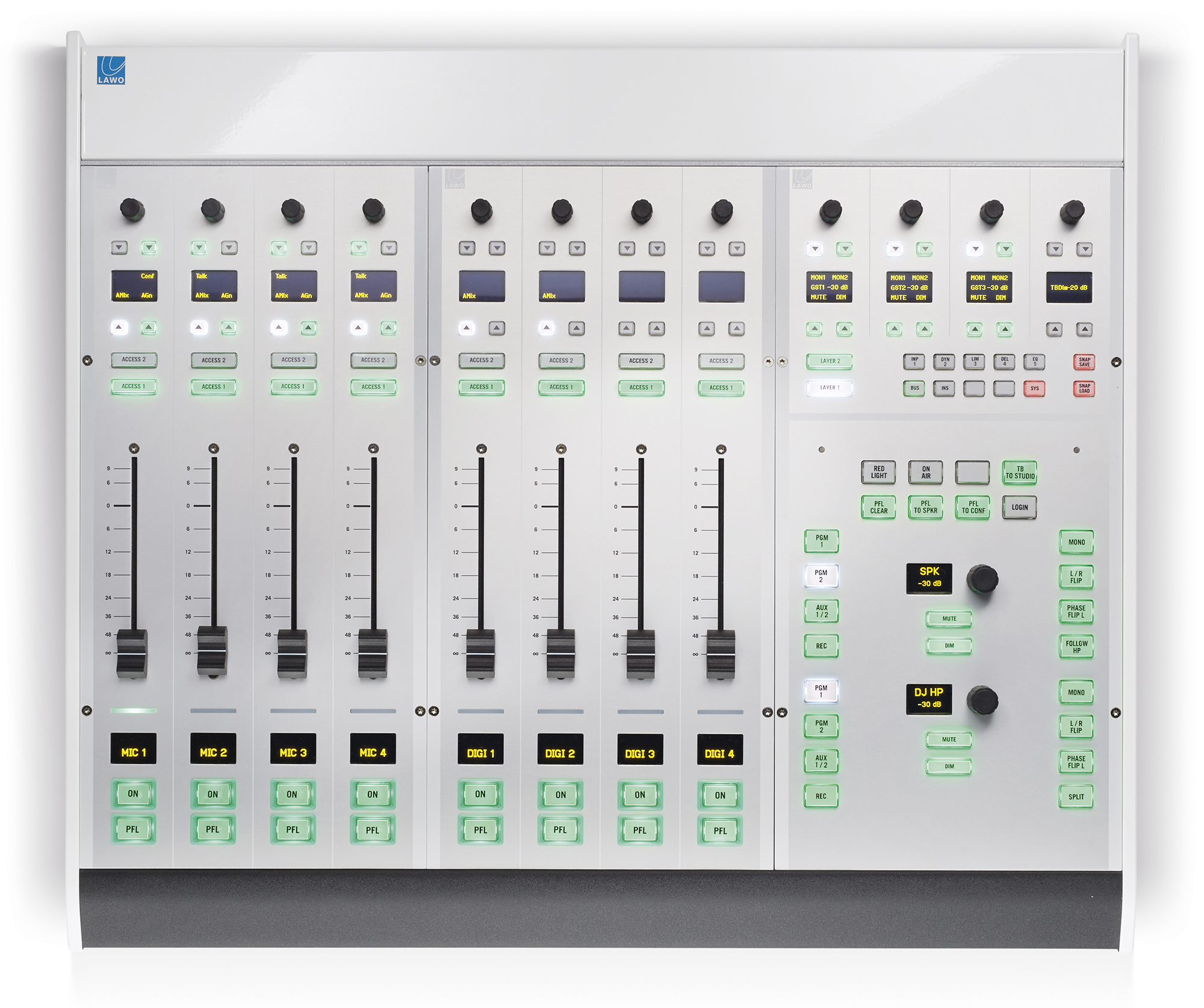

  • Desktop or flush-mount versions in 4, 8, 12 and 16 fader frame sizes, plus standalone 4 and 8 fader and Master Control extenders for localized control placement in multi-user studios
  • Multiple frames may be combined for systems up to 60 faders
  • Single-frame or split-frame configurations
  • Motorized 100 mm faders, touch-sensitive to allow instant override of pre-programmed levels
  • SmartSnaps dual-purpose snapshots with on-air + production modes and fader maps (supports 120 virtual faders)
  • 6 console snapshots for custom fader layouts that can be recalled with a single button press


  • Frame: 49.2 cm front-to-back. End-plates: 0.8 cm each
  • Modules: 18.5 cm x 37.4 cm

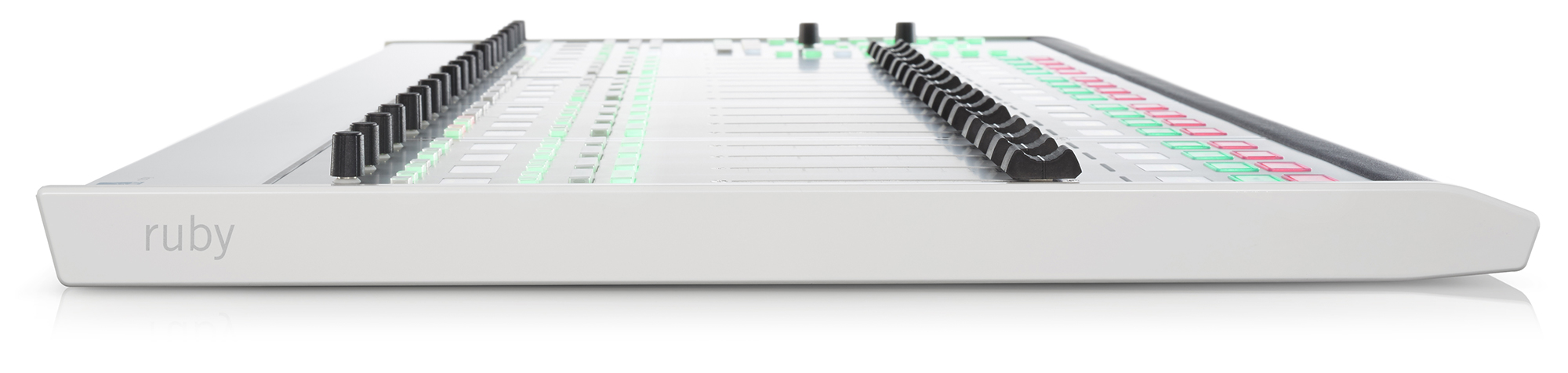

  • Height: 51 mm / 2.0” incl. controls


  • Integrated discovery and direct networked routing control of AES67 / RAVENNA streams
  • Supports popular RAS and Ember+ control protocols for playout control over IP or serial connections
  • Programmable logic core (for “On-Air” tallies, Fader Start commands, Talkback integration, etc.)
  • TCP/IP remote control for connected Lawo matrix
  • Integrated mix-minus (clean feed) / conference logic (2 independent systems)
  • Integration with radio automation systems via serial & TCP/IP

Configuration & Maintenance

  • EZConfig Wizard for fast setup configuration (Available 2018)
  • Expert Setup for advanced system and logic programming
  • Integral web server for system diagnosis
  • Dedicated software tool for software updates
  • Remote maintenance via VPN
